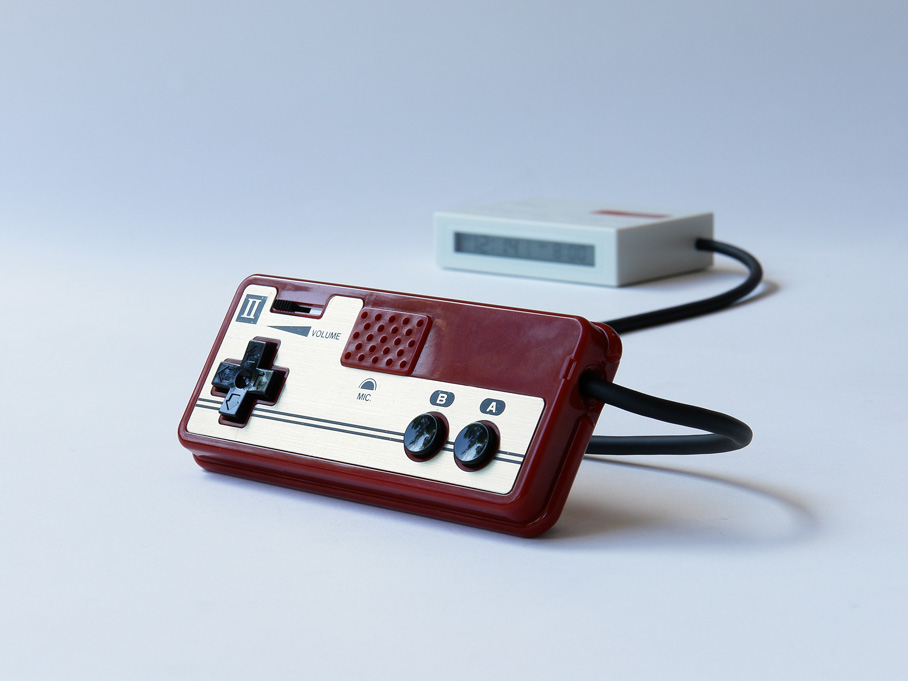

Control device: Control Pad

Manufacturer: Nintendo

Model: Famicom controller

Year: 1983



Controlled device: Travel alarm clock

Manufacturer: IDEA international (Japan)

Designed by: Ippei Matsumoto (Industrial Facility)

Model: Jetlag

Color: White, red

Year: 2009



Hard-wired year: 2010

Serial number: HWD-corp-041

Collection: Corporation

Dimensions: 35x40x3 cm

Cable: 49 cm

Power: 3v button cell x1



Set up minutes up (time): D-pad up

Set up minutes down (time): D-pad down

Set up minutes up (alarm): D-pad left

Set up minutes down (alarm): D-pad right

Start set up: Hold 3 seconds any set up action

Set alarm on/off: A button (hold 3 seconds)

Alarm off: A button (hold 3 seconds)

Snooze: A button

Light: B button



The Famicom’s original design includes hardwired, non-removable controllers. In addition, the second controller featured an internal microphone for use with certain games and lacked SELECT and START buttons. Both the controllers and the microphone were subsequently dropped from the redesigned AV Famicom in favor of the two seven-pin controller ports on the front panel used in the NES from its inception. The D-pad (cross shape on left) first came to prominence on the controller for the Famicom.

HWD corporation 041 © Roger Ibars 2010

>>>
